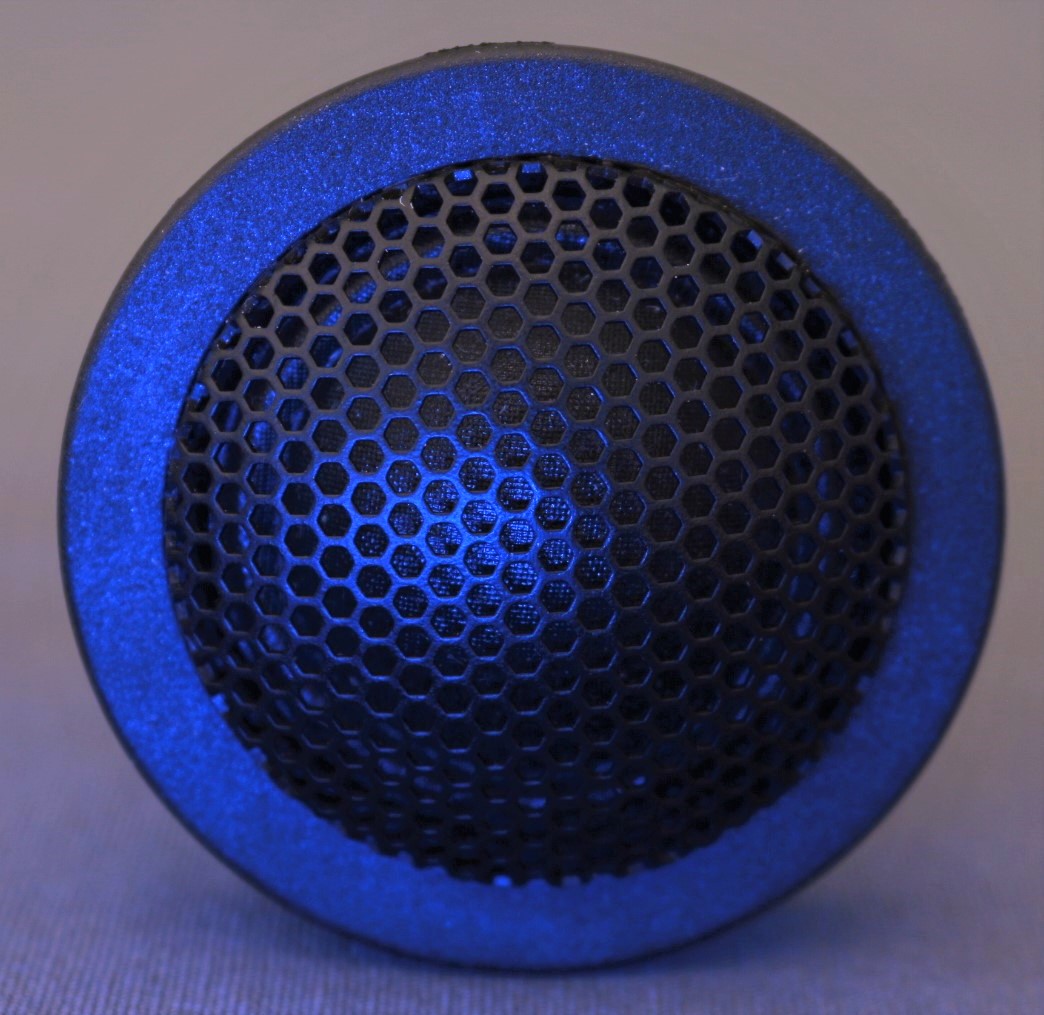

  • LPT1©

    Designed and built here in the USA.



    Linear Power™ does not allow internet sales
    For MSRP pricing or to order directly from Linear Power™ in the event there is no authorized dealer in your area Click Here.

    Tweeter Specifications

    ModelSpeaker TypePower Handling*Frequency Range (Hz)Resonant Freq. (Fs)Sensitivity dB (2.83V/1M)ImpedanceDC Resistance (Re)
    LPT1©Tweeter80 Watts2.5KHz - 25KHz18009286.8
    * Assumes unclipped signal

    Tweeter Dimensions

    Cutout Diameter (decimal inches)Cutout Diameter (Fractional inches)Mounting Depth
    1.813"1 13/16"0.6"

    It all starts with one of the smoothest tweeters you will find. No harsh metal domes here. These are lightweight fabric domes, neodymium magnets, and a 27mm voicecoil. The Linear Power™ LPT1© is precise and tough. With an FS of 1800hz it plays low enough to couple with any midrange or midwoofer. Even still it has a smooth response out beyond 20k.
